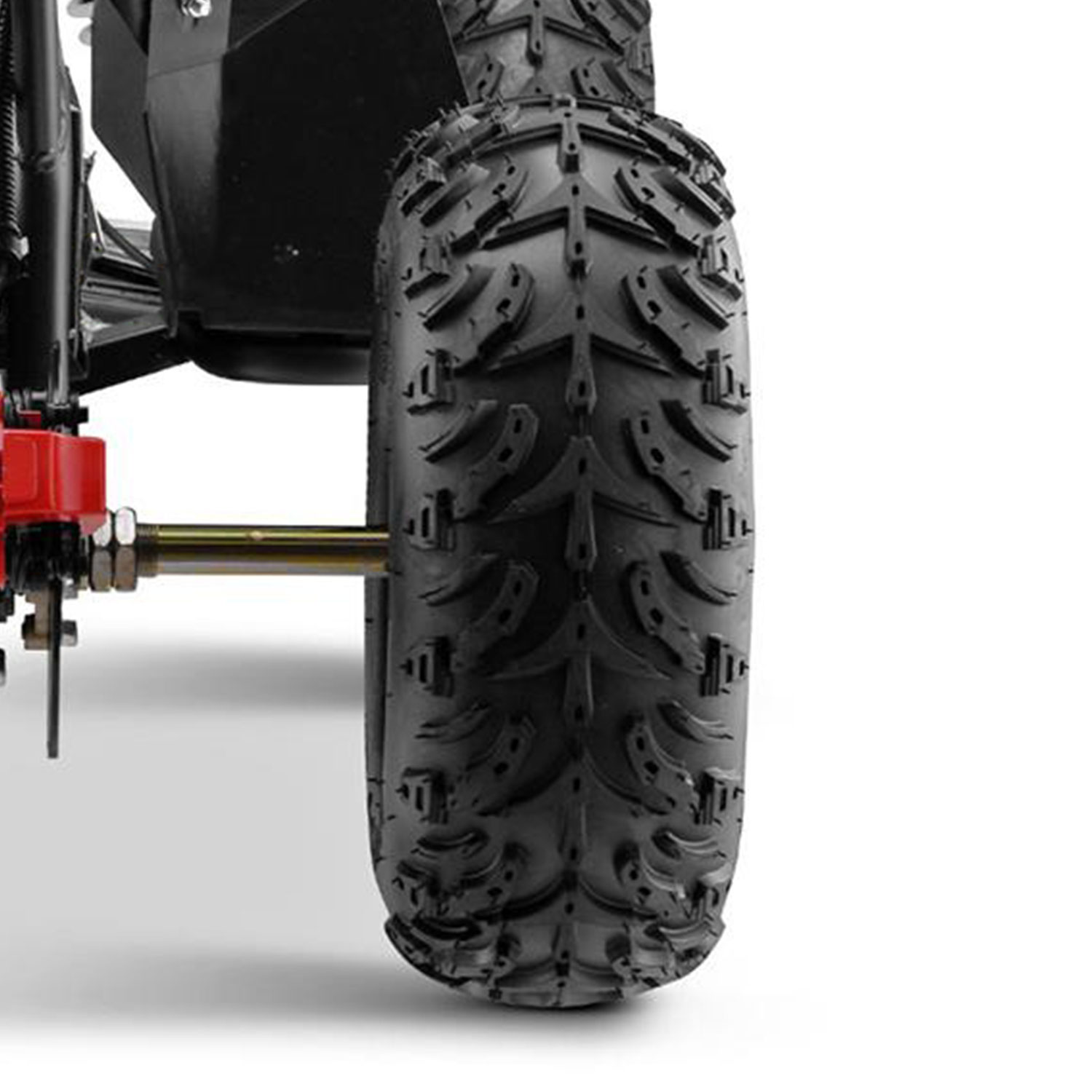

Off-Road Treaded Tyres
Off-road treaded tyres provide ample grip to cope with uneven and loose terrain.
Sales & Support: 01664 498 640
Product Code: PCFF6FC0

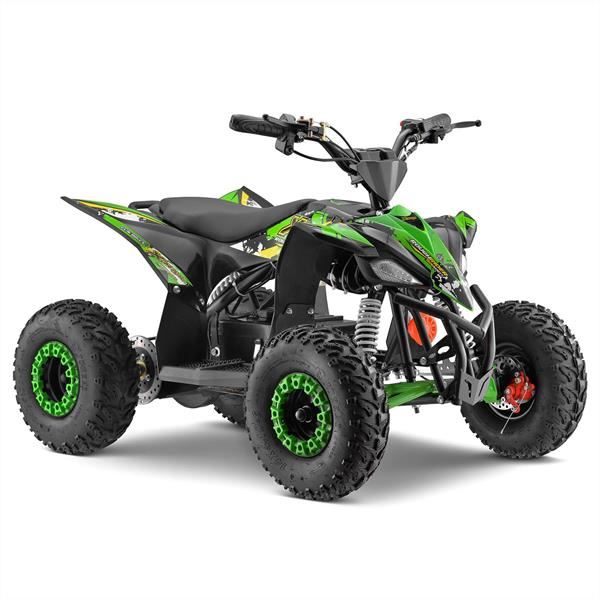

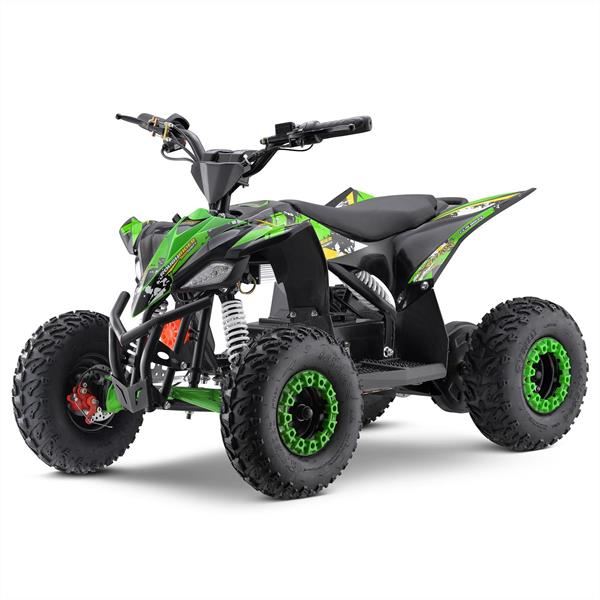

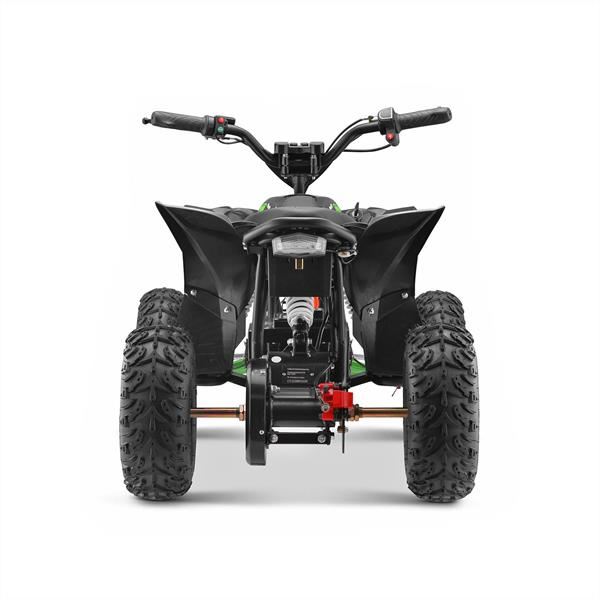

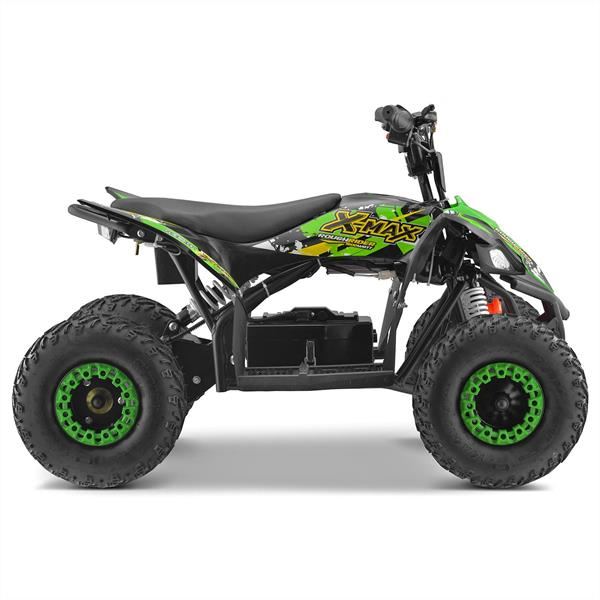

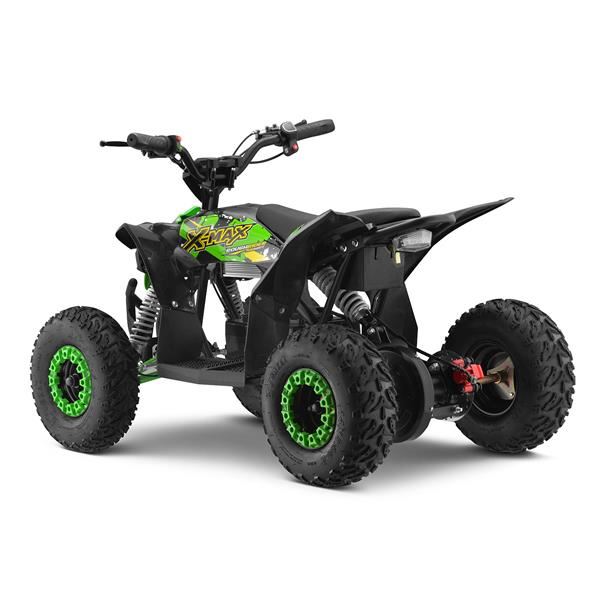

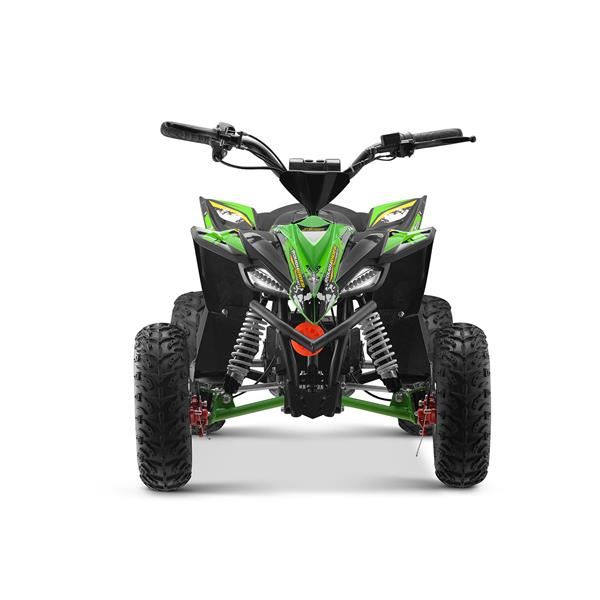

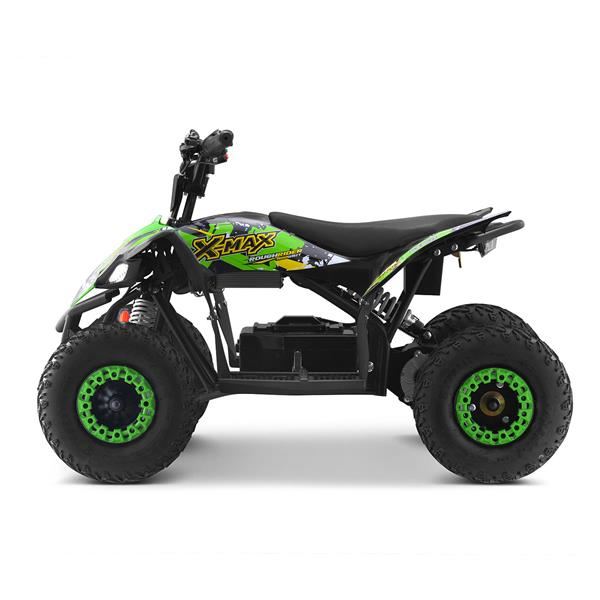

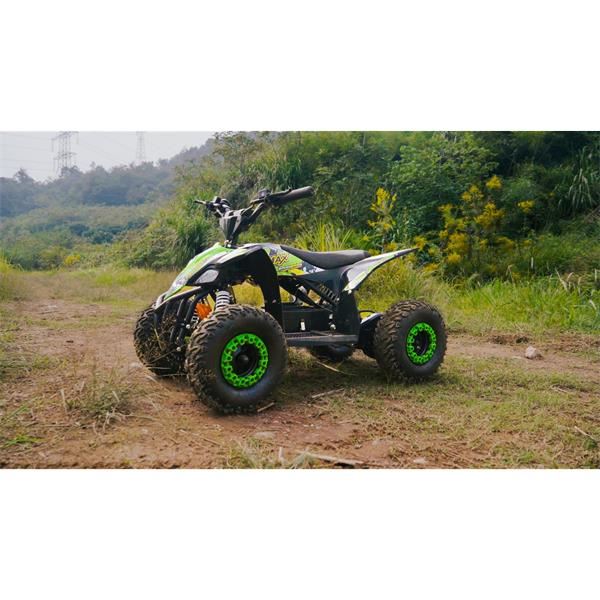

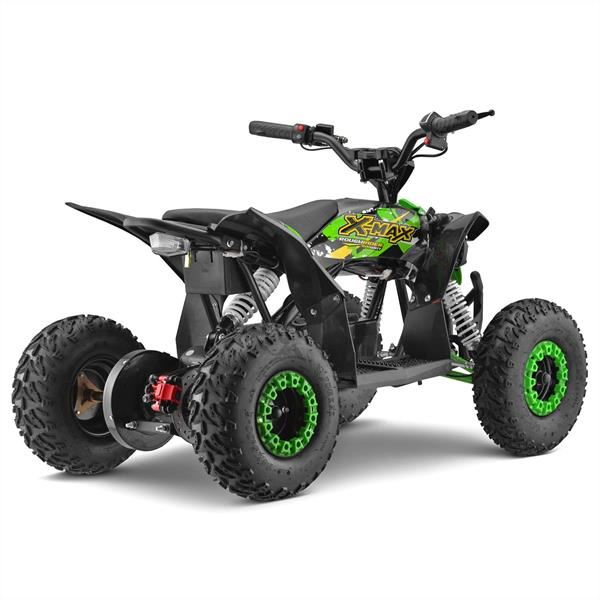

FunBikes X-Max Roughrider 1600w Li Green Junior Electric Quad Bike Available for pre-order - Expected: 16/06/2026
£899.00
SAVE £104.00
£795.00
Delivery
Click & Collect
Spread the Cost on Orders Over £100
Simply add your products & services to the basket, then continue through the checkout as normal. On the confirmation page, when you are prompted to “Pay Now” select the “Flexible Finance” option to proceed to the application screen.
Only 5 minutes to complete with an instant decision! Finance is available when spending over £100 View T&C's
Representative example
Newday Ltd. UK only. 18+ Credit and offer subject to status. T&Cs apply
This bike requires assembly
Our products are easy to assemble, and we offer guides, videos and a telephone service to help you. However, if you would rather we do it, we will assemble, test and do a full inspection and deliver “ready to ride!”.
Click to add the assembly fee (£79.00) or click Continue to receive the item flat packed.
In Action: just a 1600w quad & some open ground
In Action: X-Max Roughrider 1600w | Mini Quad Testing!
In Action: Roughrider Junior Quad Bike Series / X-Max 1600w & 110cc Rideout
In Action: X-Max Roughrider
In Action: T-Max Roughrider 1600w
In Action: X-Max Roughrider 1600w | Junior Electric Quad Bike
In Action: Funbikes Off-Road! | WE HAVE THEM ALL!
The X-Max 1600w quad.. electric power, instant fun!
360 Preview: X-Max 1600w Walkaround
Assembly: X-MAX 110cc Quad Assembly Guide | Also Fits 90cc, 1100w & 1600w Models
|
Funbikes X-Max Roughrider 1600w Electric Quad Bike The X-Max junior quad bike is one of the newest additions to the great Funbikes electric quad range! Powered by a 1600w hi-torque brushless motor and requiring minimal maintenance, this is the perfect quad for young speed demons. The electric motor incorporates a high-torque gear ratio, which makes it suitable for flat grounds such as gardens, hills and gradients, and off-road quad biking terrain. Giving a run time of around 45 to 80 minutes (dependent on rider weight and terrain), there's plenty of time to have fun on the X-Max.
Key features

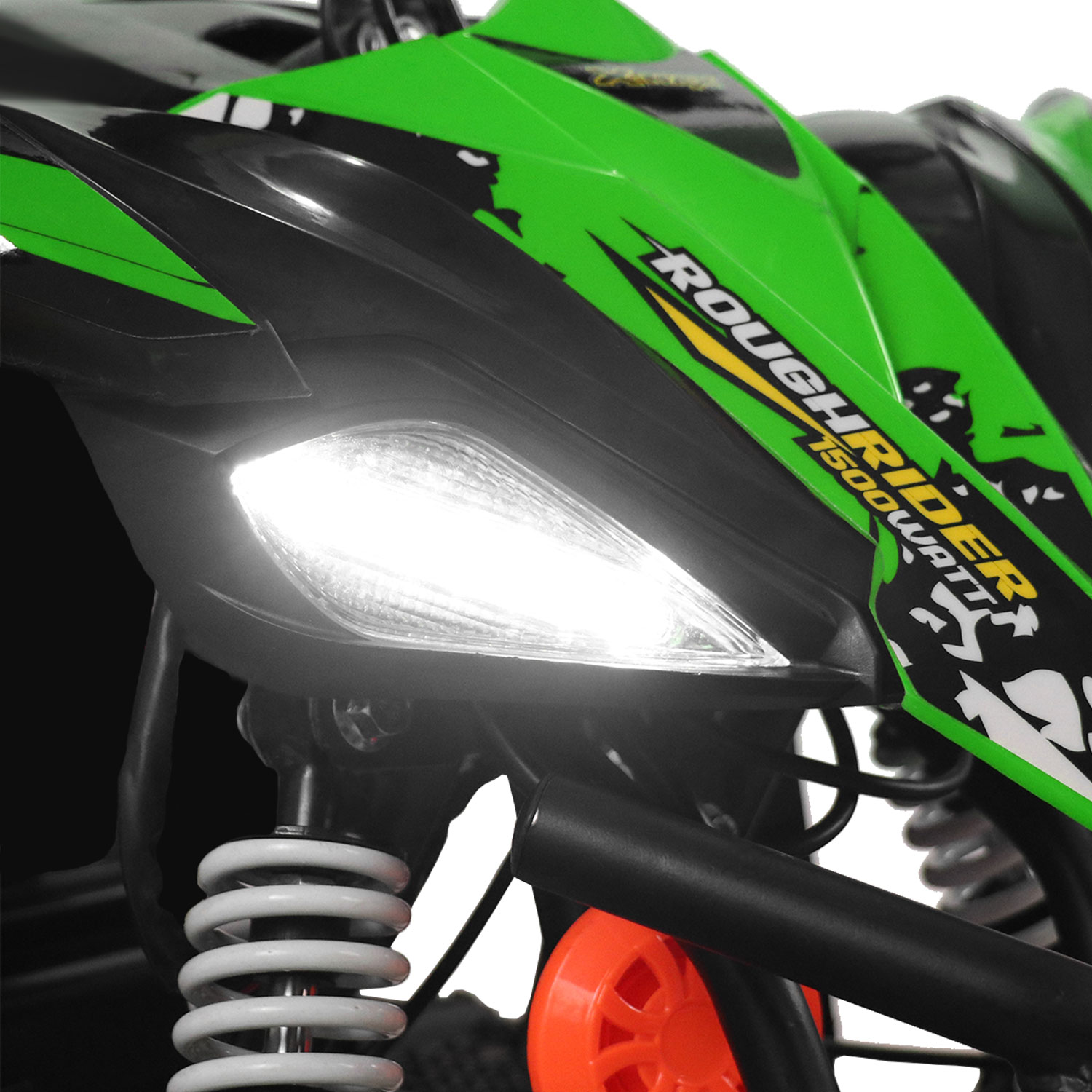

LED HeadlightsFitted with LED high-power headlights, keeping your child safe and visible when out and about.

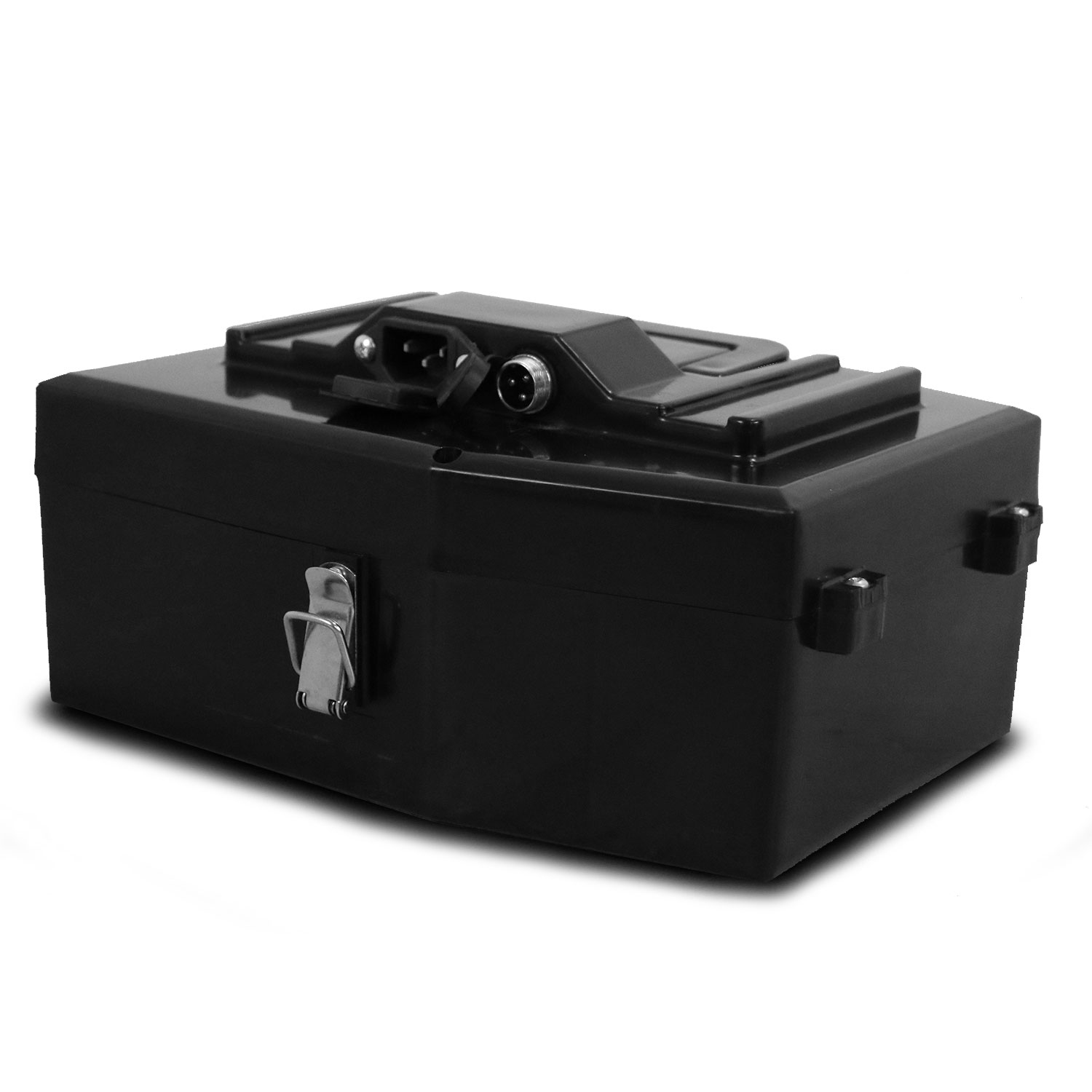

Removable Lithium Battery Pack with Charge PortUsing a removable Lithium-ion battery pack means the battery can be removed from the quad to be charged individually. This prevents muddy tyres inside and running extension cables out the window. Also, with interchangeable battery packs, you can make it so the fun never stops!

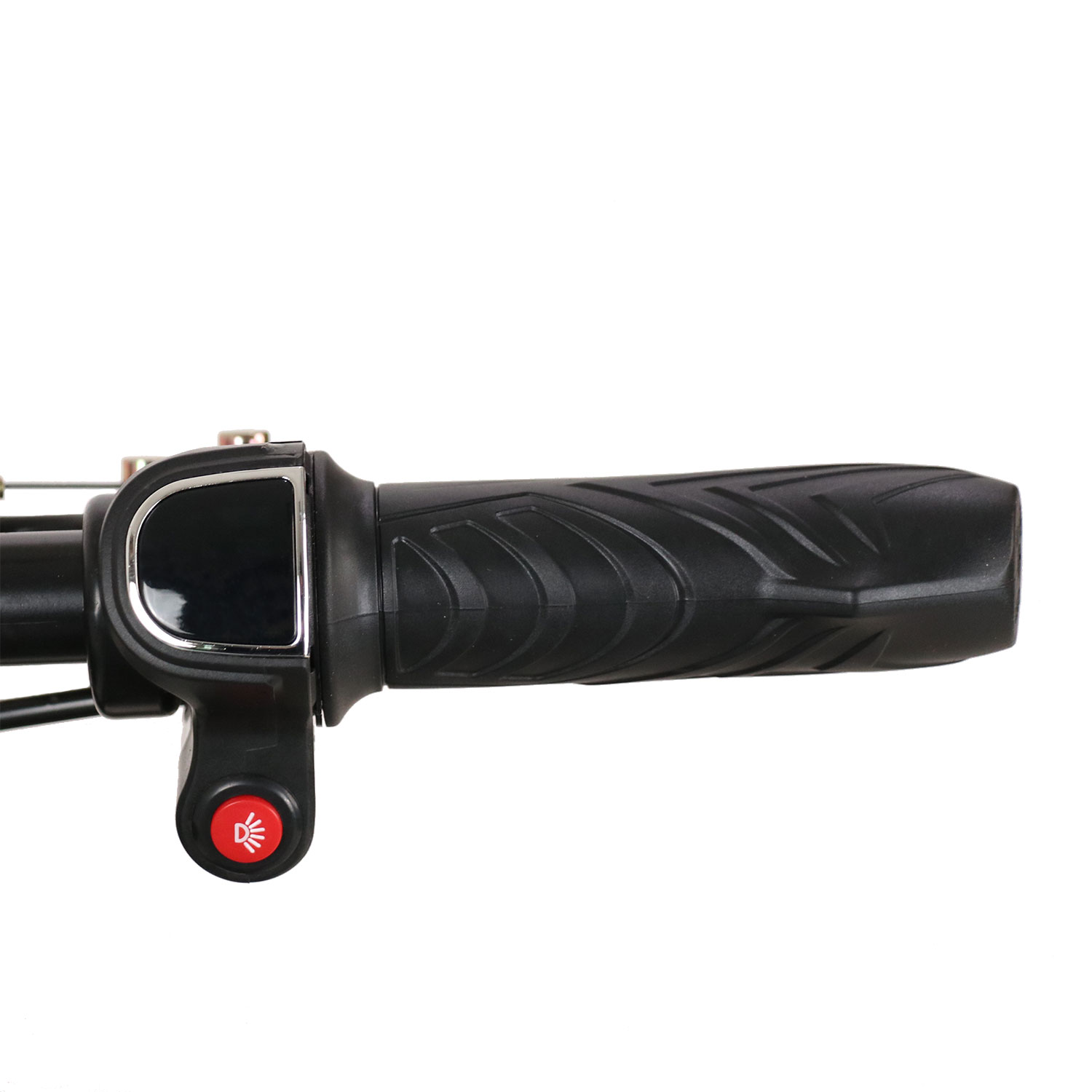

Twistgrip ThrottleThe twistgrip throttle makes it easier to control the level of speed when handling these quad bikes.

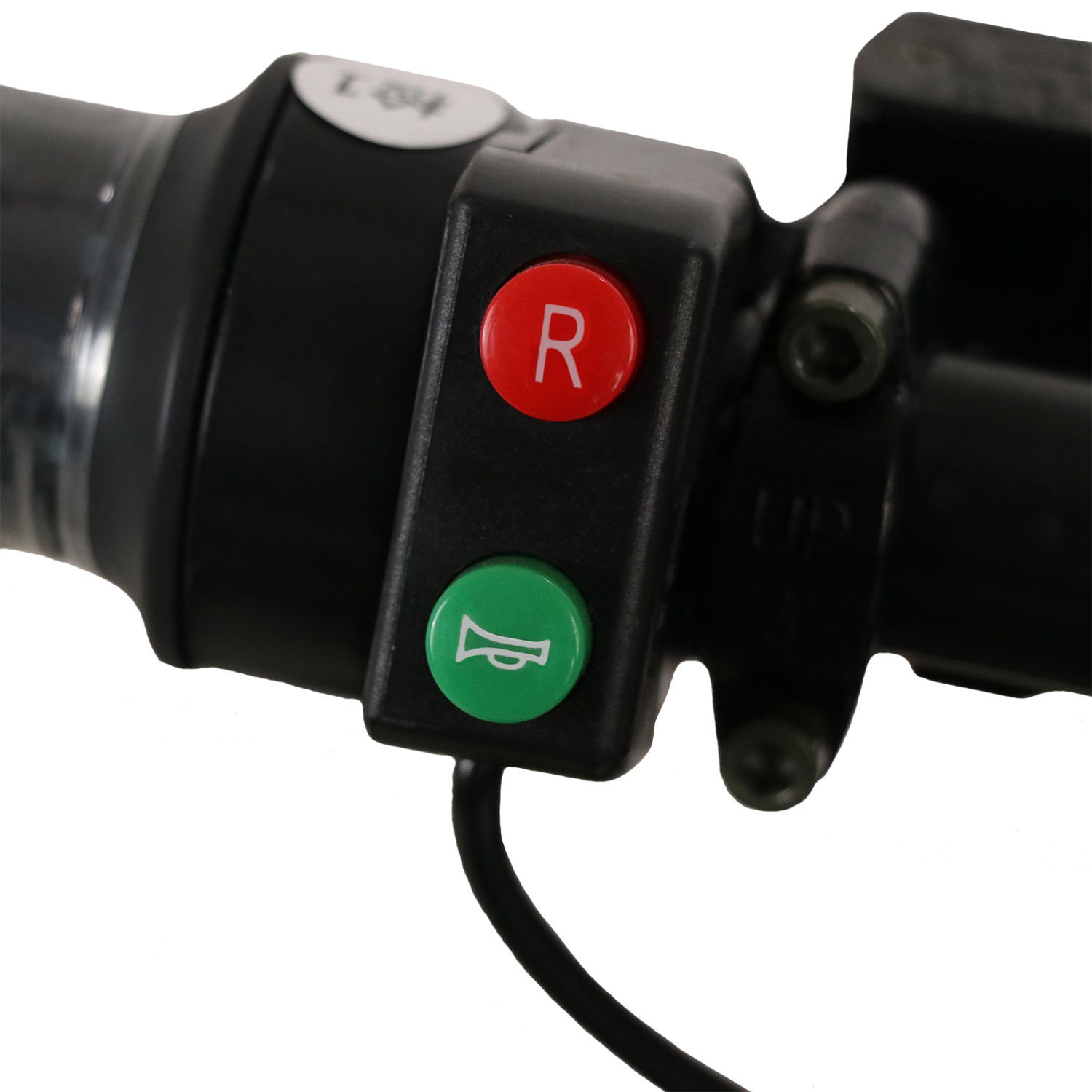

Forward and Reverse GearsEasy-to-operate gears, with reverse available at just a push of the button. Located on the left-hand side hand grip, you don't even need to let go of the bars to switch into reverse.

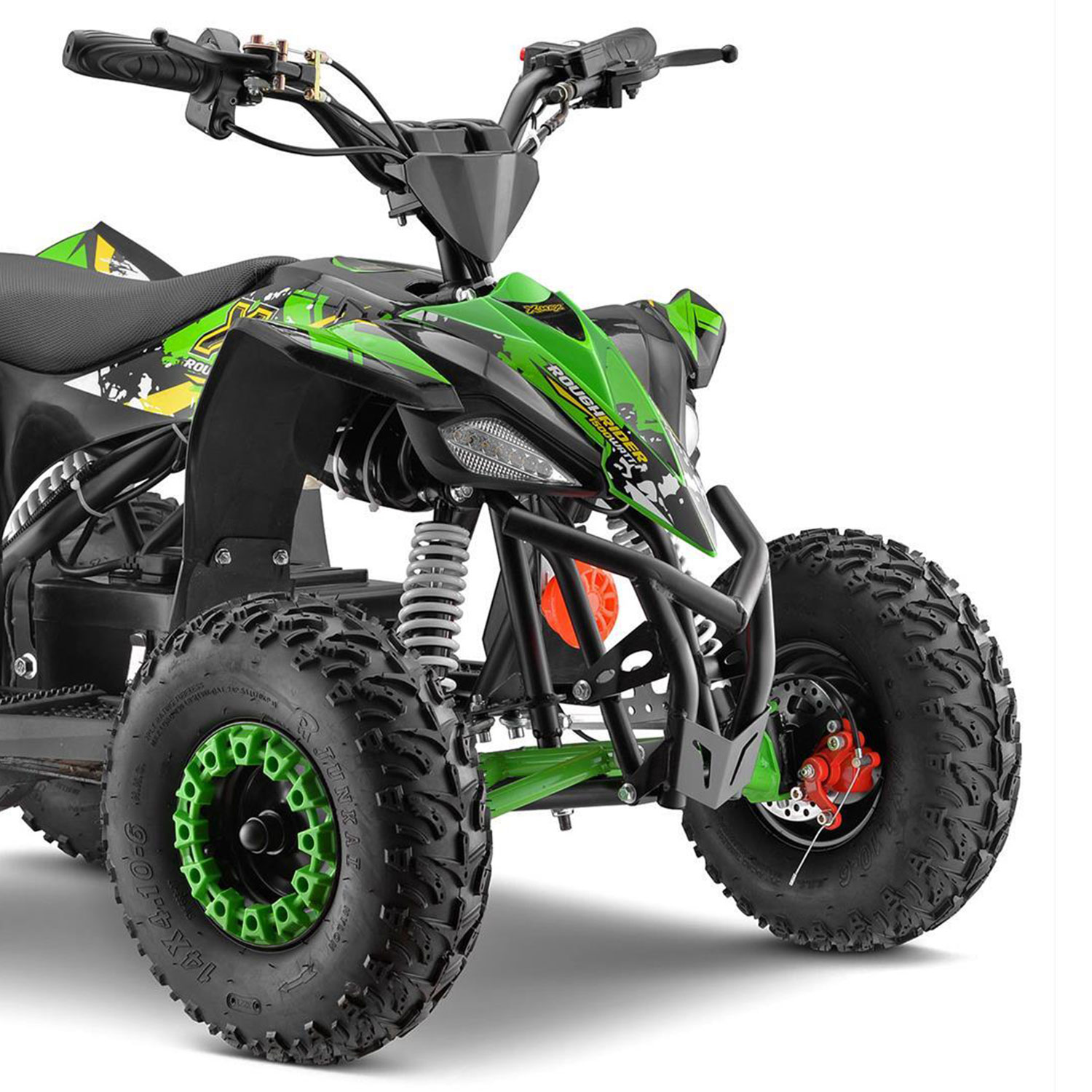

Raptor Style BodyHaving a Raptor-style body, they really do look the part. Being a scaled-down version of the real thing, the kids will really look the part when they’re blasting around a field.

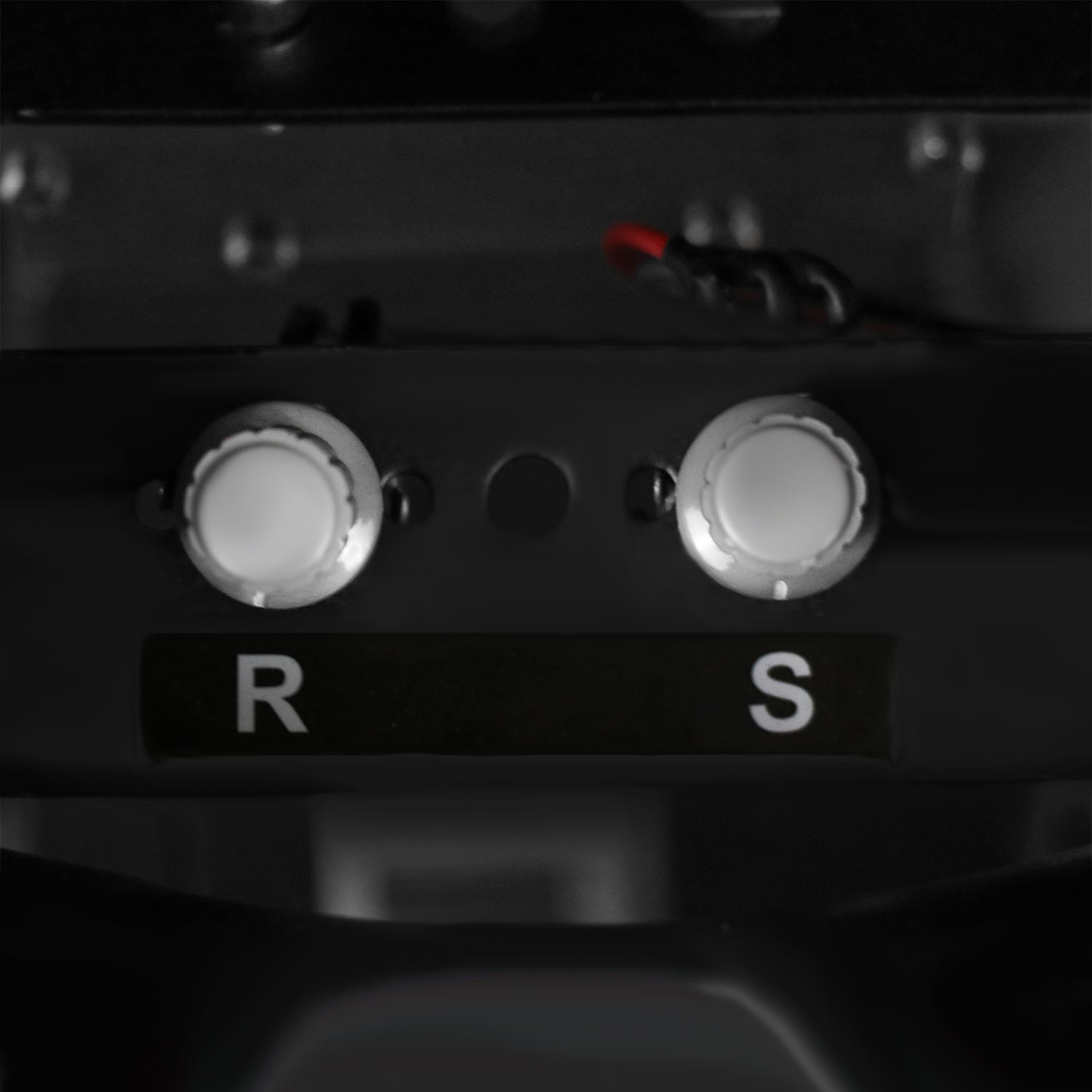

Easy Access Intelligent ControllerThrottle Response - Choose how you want the power delivery, sporty & aggressive, soft & gentle, or somewhere in between? Speed Setting – You set the top speed from anywhere between 8 km/h to 38 km/h.

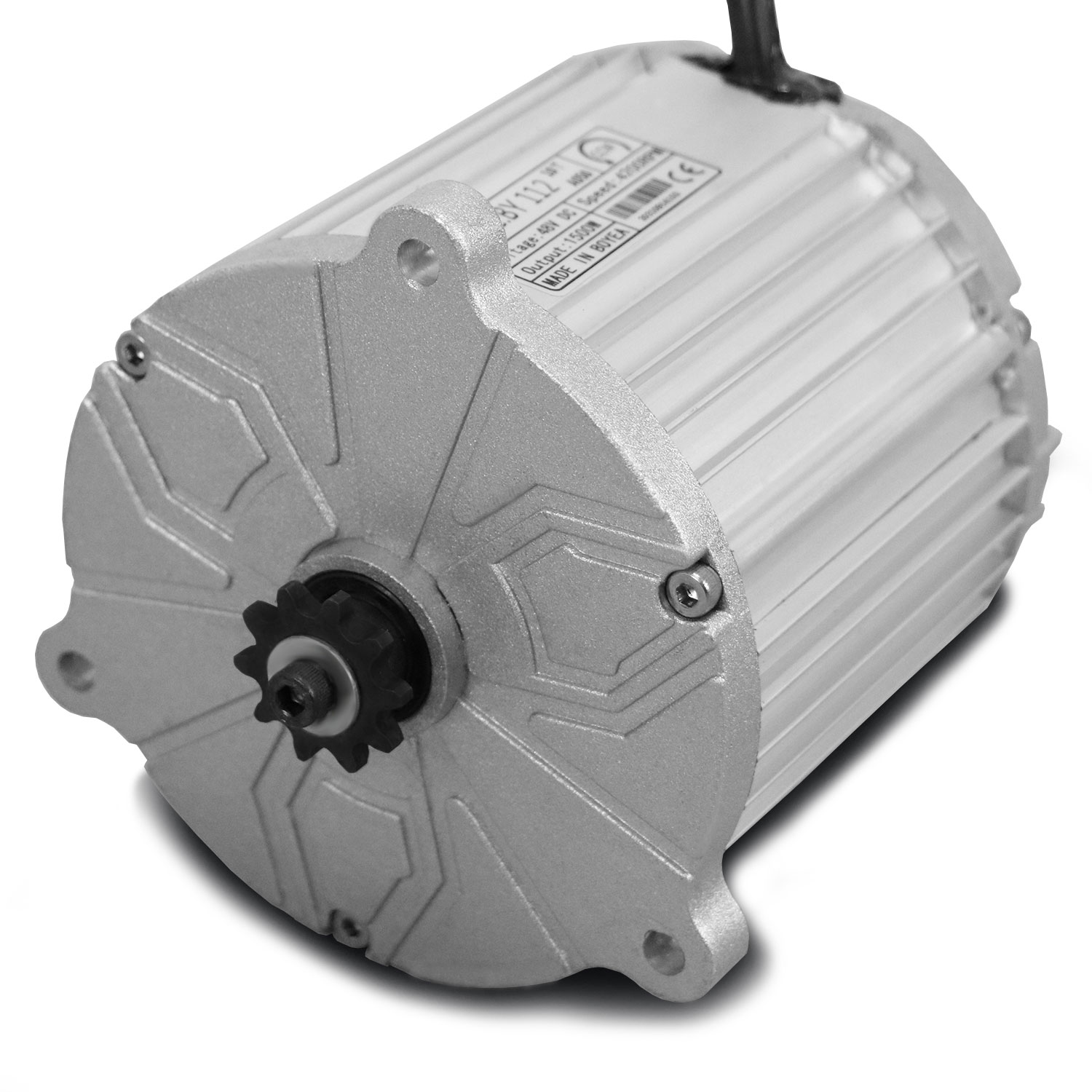

High Power 1600w motorFitted with a Hi-Torque, high-power 1600w motor with minimal engagement lag, the X-Max has almost instant torque for every scenario.

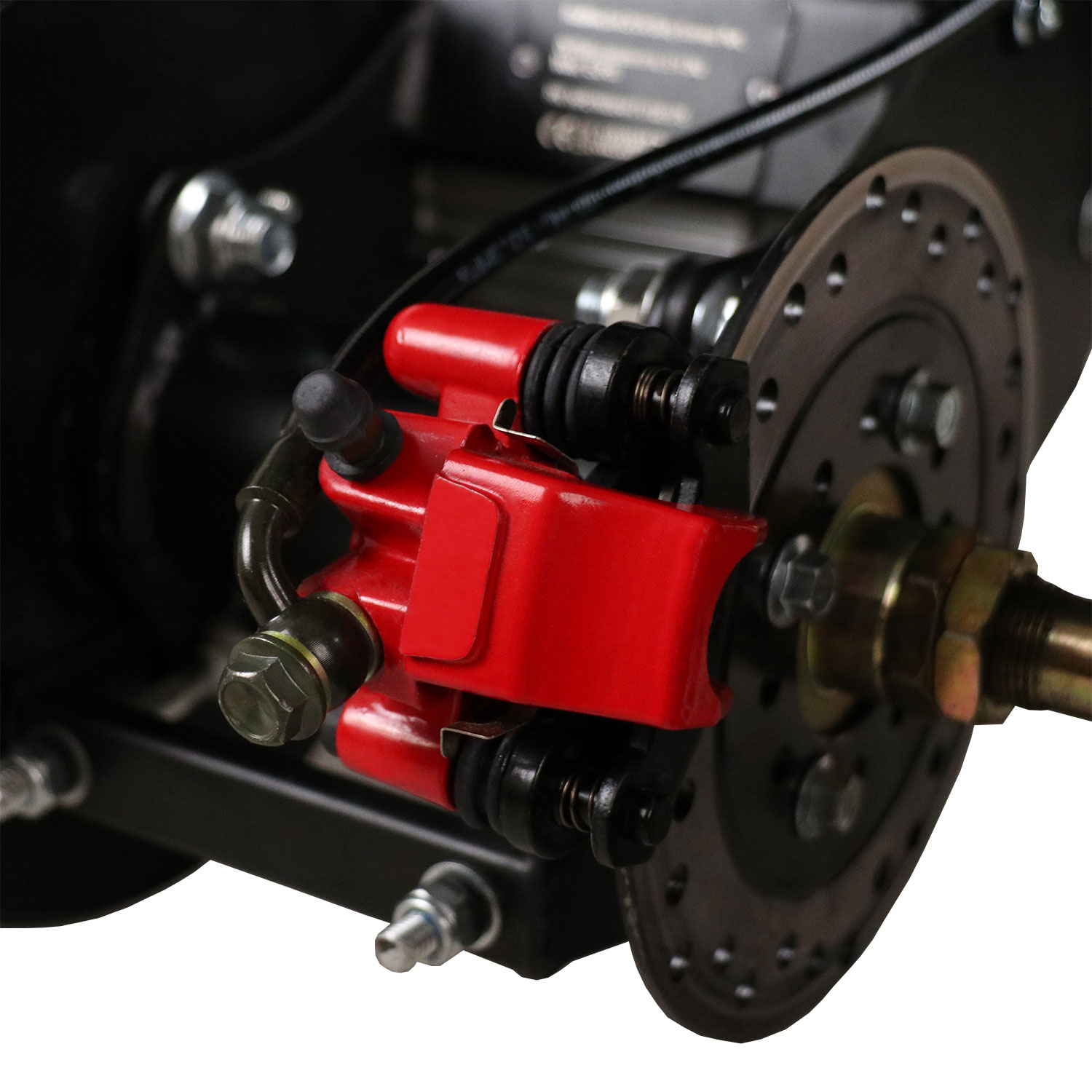

Hydraulic Rear Disc BrakeUsing a hydraulic-operated rear brake for both reliability and performance. Locking up the rear axle has never been easier and more fun!

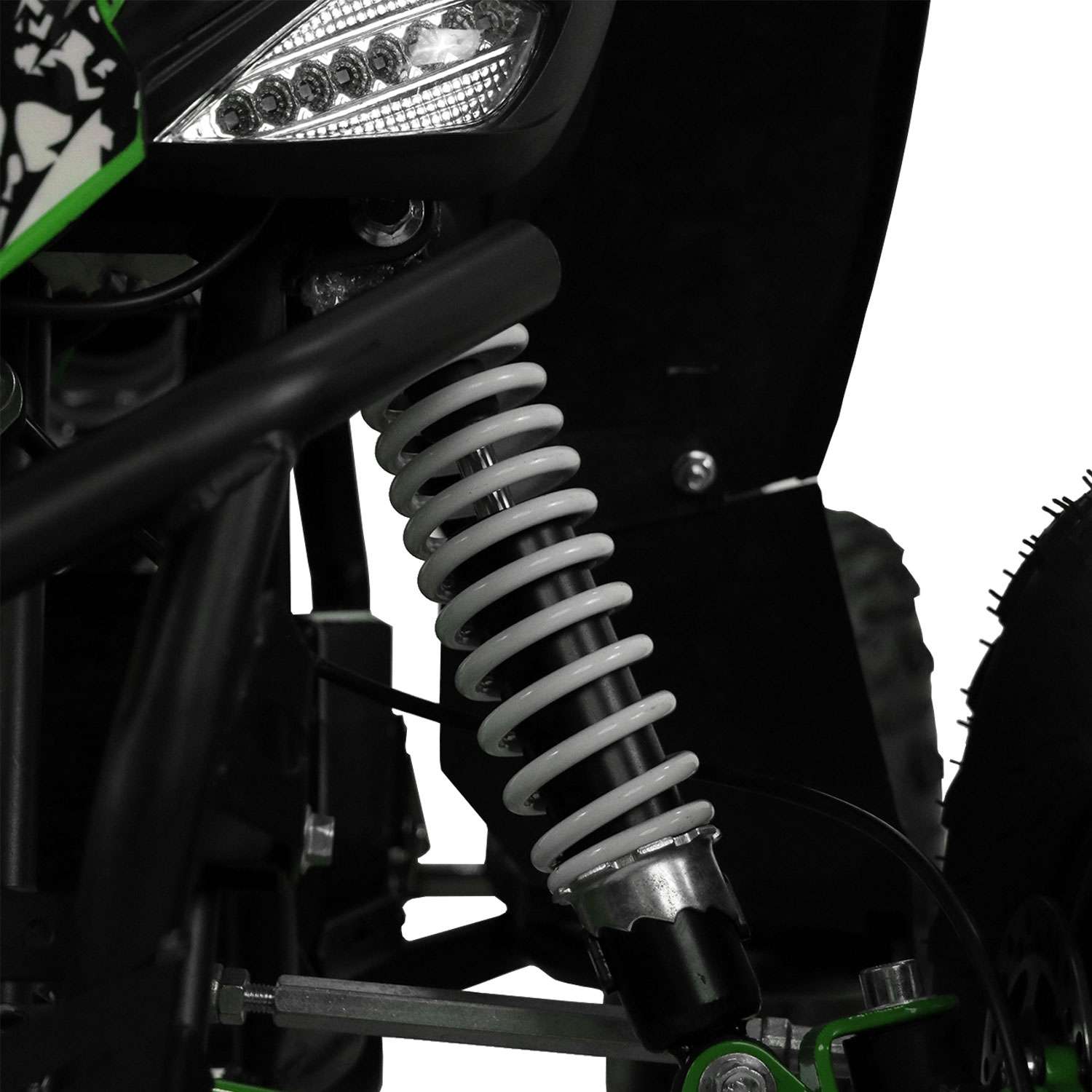

Front Oil Filled Shock Absorbers and Rear Mono ShockOil-filled shock absorbers provide great control when the going gets tough, inspiring confidence for young riders.

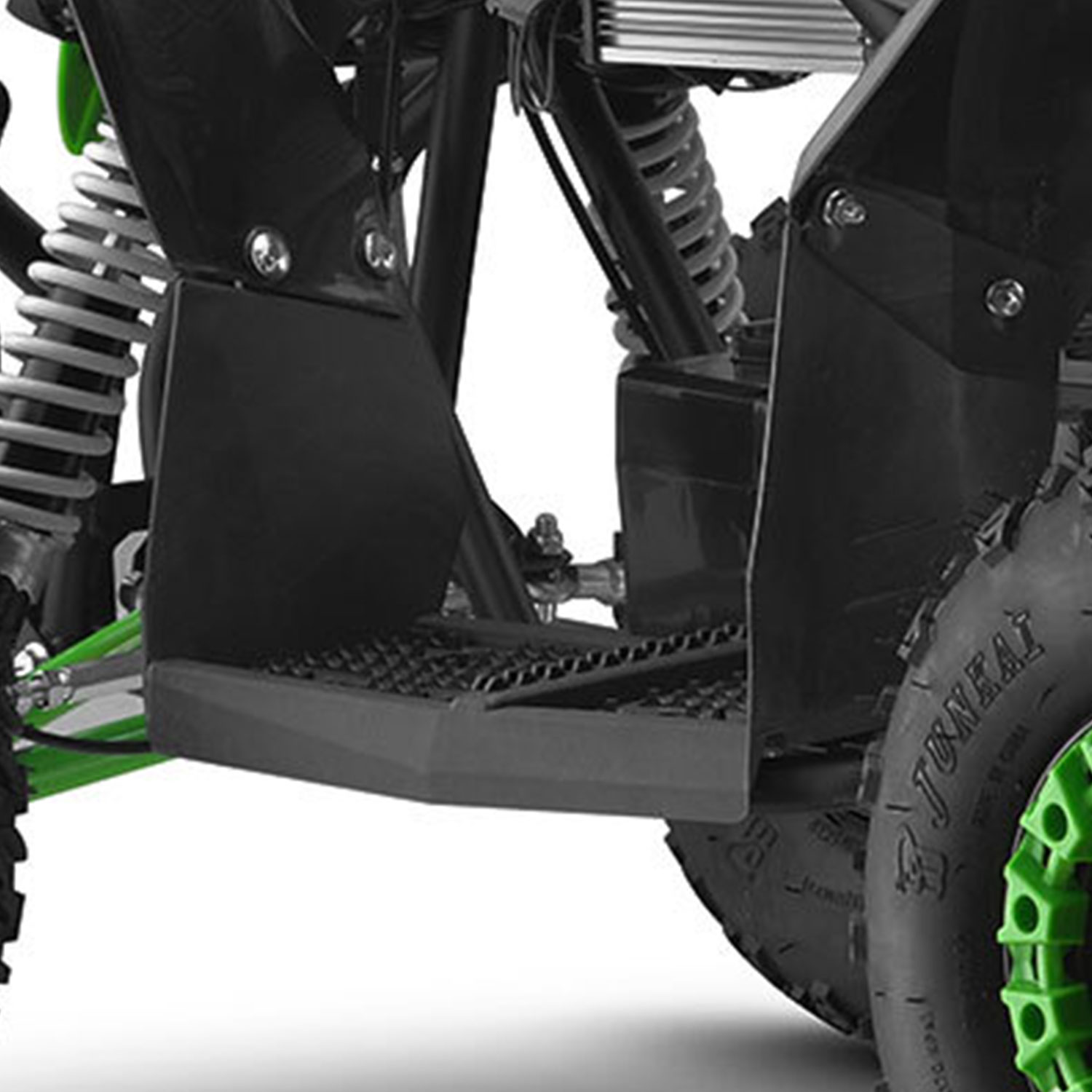

Enclosed FootwellsFitted with enclosed footwells, these provide ample protection to the feet and legs of the rider. They reduce the risk of injury to help ensure a good day out is a happy one!

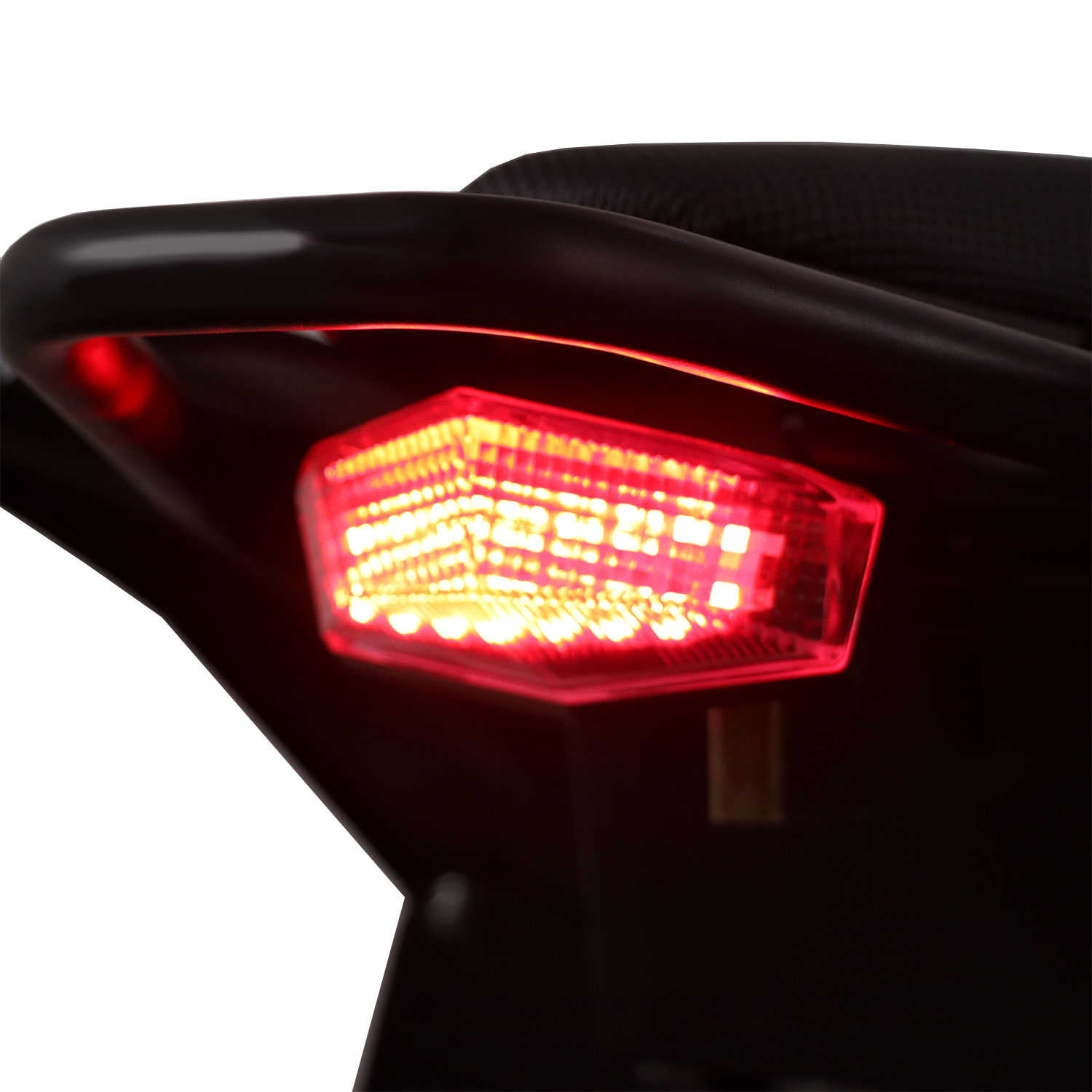

Rear Brake LightWith an LED rear brake light, having multiple of these quads isn’t an issue. Letting the rider behind know when you’re slowing down, enables safe riding in groups and reduces the risk of running into each other
Special Features
Suitability & Safety Guidance Due to varying safety legislation and the performance capability of this product (up to 23mph), age recommendations alone are no longer considered a reliable indicator of suitability. To ensure the rider's safety, comfort, and control, FunBikes now uses measurement-based guidance. Parents and guardians are required to assess suitability based on the rider's physical size, coordination, and ability — rather than age alone. Fitment Guide This quad is best suited for children with the following body measurements:
How to measure: Sit the rider on a flat chair and measure from the underside of their thigh (where it meets the seat) to the sole of their foot. This gives the seat-to-footrest distance — it should fall between 30cm and 40cm for proper posture and safe operation. Performance This quad bike is capable of speeds up to 23mph and includes an adjustable speed restrictor. Due to its speed and power, it may not be suitable for children under 14 years old.
FunBikes strongly advises all customers to supervise young riders at all times and to ensure the use of appropriate safety gear, including a helmet, gloves, and knee/elbow protection. The X-Max is designed for use on flat, off-road terrains such as grass, gravel, or compacted soil and is not a ride-on toy, but a scaled-down powered quad bike.
SupportWe offer a full support service with FREE lifetime telephone technical advice and stock standard & performance parts. Servicing & Maintenance checks are also available - Call for details.
AssemblyAs standard, this model requires partial assembly. Approx. 60 minutes. Please see our example assembly videos for more information. For professional assembly, set up and a full pre-delivery inspection, Please “Add Assembly” on the product page.
WarrantyStandard 6 Month Manufacturing Defect Warranty. Unless otherwise stated this product is not designed for Motocross, Mini or BMX tracks and such use will invalidate the warranty. Limitations – Any modification, use of noncertified accessories, water ingress, misuse or incorrect assembly, lack of or incorrect maintenance, incorrect parts installation, or collision damage, will invalidate the warranty. Commercial use is prohibited.
AdviceA mechanically able person will be required to carry out the assembly and long-term maintenance of this product. Maintenance will be required to service the bike and fit parts to this product as usage requires. Please consider these requirements before purchasing the item. We do offer a FREE support line where our mechanics will diagnose problems and help you source any required parts, but you will be required to fit those parts and assist in the diagnosis. |
| Battery Specification | 48 Volt - 13AH |
| Battery Type | Lithium |
| Body Material | Plastic |

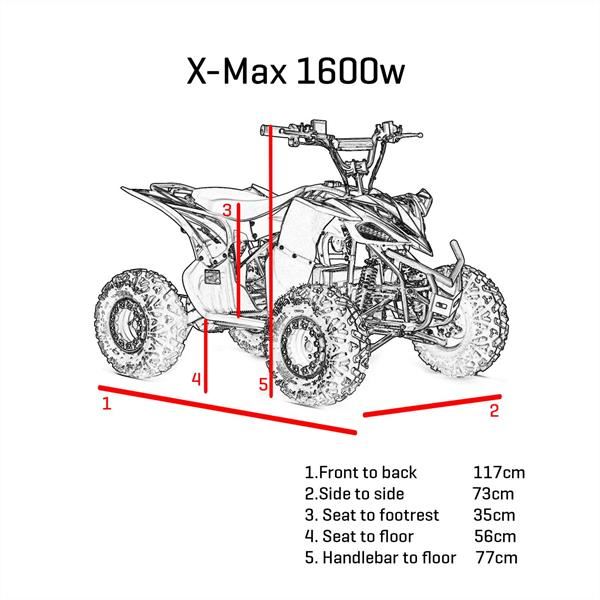

| Boxed Dimensions | L104cm x W63cm x H53cm |
| Brakes | Front Disc & Rear Hydraulic Disc Brakes |
| Built Dimensions | L114cm x W73cm x H74cm |
| Colour | Green |
| Drive | Automatic |
| Engine Spec | Electric Motor |
| Engine Type | Electric Motor |
| Frame | Chromoly Steel |
| Gross Weight | 58 Kg |
| Lights | Front - Rear - Brake |
| Manufacturer Recommended Age | 12+ |
| Max Rider Weight | 65 Kg |
| Max Speed Performance Age Classification | Guide 14+ - Height, Weight & Skill should be considered |
| Motor Size | 1600w |
| Net Weight | 49 Kg |
| Other Specs | This product offers water resistance, but it is not waterproof - not suitable for immersion in water |
| Requires Some Assembly | Yes |
| Safety Features | Fully Enclosed Safety Foot Wells |
| Seat Height | Seat to Footrests 35cm |
| Suitability | Seat to Footrest Measurement - 30cm-40cm |
| Suspension | Hydraulic Shock Absorber / Front A Swing Arm / Rear Mono Shock |
| Throttle Type | Twistgrip |
| Top Speed | 38 km/h Dependant On Rider Weight & Terrain |
| Tyres | Front 14*4 10-6" / Rear 14*5 0-6" Tubeless |
| Voltage | 48v |
| Warranty | 6 Months Manufacturing Defects (Parts Only) |
* Product specifications are subject to change without notice and may vary from those shown. Errors and omissions excepted.
